Comprehensive Guide to Wire Rope Sockets

Wire rope sockets are critical components in lifting, rigging, and securing operations across industries such as construction, marine, offshore, mining, and industrial manufacturing. They provide secure terminations for wire ropes, allowing safe connection to hooks, crane blocks, winches, or other rigging hardware. Selecting the right socket and proper installation ensures maximum safety, efficiency, and longevity of the wire rope system.

1. Definition and Purpose

A wire rope socket is a device used to terminate the end of a wire rope by forming a loop or an eye. Its main purposes include:

1. Load Transfer: Efficiently transfer load from rope to connected hardware.

2. Safety: Prevent rope slippage or unraveling under load.

3. Ease of Connection: Provide a convenient attachment point to rigging components.

4. Flexibility: Suitable for permanent or semi-permanent installations depending on socket type.

2. Classification of Wire Rope Sockets

Wire rope sockets can be categorized by termination method, design, and application. The main types are as follows:

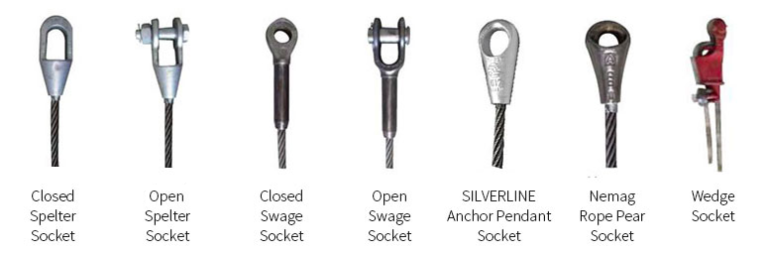

2.1 Spelter Sockets (Casting)

Spelter sockets use molten metal (zinc, aluminum, or resin) to embed the wire rope end. They are widely used for heavy-duty and permanent applications.

• Closed Spelter Socket:

  • Rope is fanned out and completely embedded in molten metal.

  • Provides maximum strength, fully enclosed termination.

  • Applications: Offshore mooring, heavy lifting, cranes.

• Open Spelter Socket:

  • Similar to closed type, but with a visible opening for inspection.

  • Ensures strand integrity while maintaining high load capacity.

  • Applications: Marine and offshore applications where regular inspection is required.

2.2 Swage Sockets (Mechanical Compression)

Swage sockets use mechanical compression to secure the wire rope inside a steel or alloy socket.

• Closed Swage Socket:

  • Fully enclosed design; rope is compressed to form a permanent connection.

  • Compact and strong.

  • Applications: Hoists, elevators, construction cranes.

• Open Swage Socket:

  • Partially open to allow visual inspection of the compression.

  • Offers easier maintenance without compromising much strength.

  • Applications: Lifting systems where periodic inspection is required.

2.3 Mechanical / Wedge Sockets

• Wedge Socket:

  • Uses a mechanical wedge to grip the rope.

  • Allows adjustable and reusable connections.

  • Applications: Temporary rigging, hoisting, tensioned cables.

• Pear / Rope Pear Socket (e.g., Nemag):

  • Pear-shaped termination suitable for hooks or pendants.

  • Streamlined design reduces snagging.

  • Applications: Offshore lifting, pendants, hook connections.

• Anchor Pendant Socket (e.g., SILVERLINE):

  • Pre-fabricated socket for anchor or pendant lines.

  • Ready-to-use, convenient for marine and offshore applications.

3. Design Considerations

When selecting a wire rope socket, the following factors are critical:

1. Rope Diameter and Construction: Match socket to wire rope type (e.g., 6×36, 8×19, IWRC).

2. Load Capacity: Must meet or exceed the wire rope’s working load limit (WLL).

3. Termination Method: Swage, cast, or mechanical affects strength, maintenance, and inspection.

4. Environmental Factors: Corrosion, marine exposure, and temperature influence material choice.

5. Inspection and Maintenance: Some sockets allow easier access for inspection.

4. Installation Principles

Proper installation ensures maximum safety:

• Spelter Sockets: Fan rope strands, insert into socket, pour molten metal, allow to cure, inspect.

• Swage Sockets: Insert rope, compress uniformly using hydraulic or mechanical swaging, inspect compression.

• Mechanical / Wedge Sockets: Insert rope, tighten wedge/pin/nut according to manufacturer specifications, test load if required.

5. Safety and Inspection

• Regular visual inspections for corrosion, cracks, and strand breakage.

• Periodic proof load testing as required by standards.

• Follow replacement guidelines if wear exceeds safe limits.

Common Standards:

• ISO 2408 – Steel wire ropes: Specifications for termination.

• ASME B30.9 – Slings and hardware safety standards.

• DNV / ABS / Lloyds – Marine applications.

6. Applications of Wire Rope Sockets

Wire rope sockets are widely used in:

1. Marine and Offshore: Mooring lines, anchor chains, lifting rigs.

2. Construction and Cranes: Hoist lines, tower cranes, overhead cranes.

3. Mining: Draglines, hoists, shaft lifting systems.

4. Industrial Manufacturing: Material handling, heavy machinery suspension.

5. Bridges and Infrastructure: Suspension cables, guy wires, tension systems.

7. Advantages

• High-strength, reliable rope termination.

• Ease of integration into rigging systems.

• Compatible with various rope constructions.

• Can be customized for load, environment, and rope diameter.

8. Limitations

• Improper installation may lead to failure.

• Cast and swage sockets are permanent; replacement requires rope cutting.

• Mechanical sockets require precise torque.

• Environmental factors may reduce lifespan if unsuitable materials are used.

9. Maintenance Best Practices

1. Regular cleaning and lubrication.

2. Routine inspections for broken strands or wear.

3. Replace before end-of-life.

4. Maintain records of load cycles and inspections.

10. Summary Table of Common Socket Types
